Central Calgary Net-zero Ready

Calgary home cuts estimated energy demands by nearly 50 per cent.

No items found.
No items found.
Building photo: Front After

Calgary, Alberta

In 2023, Solar Homes Inc. retrofitted this 1984 Calgary home, getting it to net-zero ready. By increasing the home's airtightness, adding more insulation to the exterior walls and attic, and upgrading windows and mechanical system, the home's estimated energy use dropped almost 50 per cent. The project even added an extension to the rear master bedroom.

The retrofit included the following improvements:

  • Rear Master Bedroom Extension
  • New Innotech Windows
  • Electrical Service Upgrade 200A
  • 6” Roxul with Corrugated Steel Siding on the exterior
  • Sprayfoam attic to make it airtight and install R60 insulation
  • 2.5 tonne Daikin heatpump
  • 50 Gallon Ao Smith Heatpump hotwater
  • Drain Water Heat Recovery
  • Disconnect Gas
  • Reduce ACH50 from 3.50 to 0.93
  • Heat Demand from 14.65kW to 6.44kW
  • Insulate Basement 18” Below Grade (R20 added)
  • Energy Recovery Ventilator

Drawings

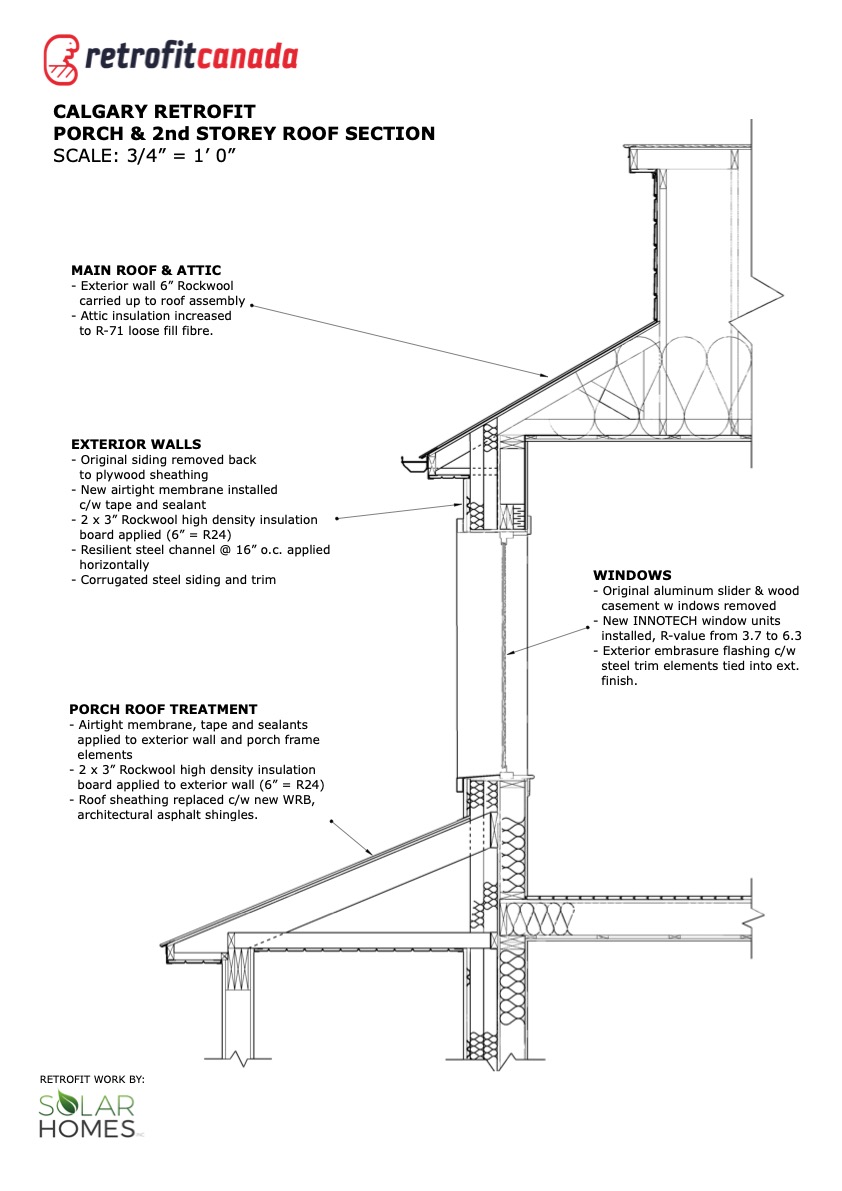

Drawing 1 Porch Roof Section

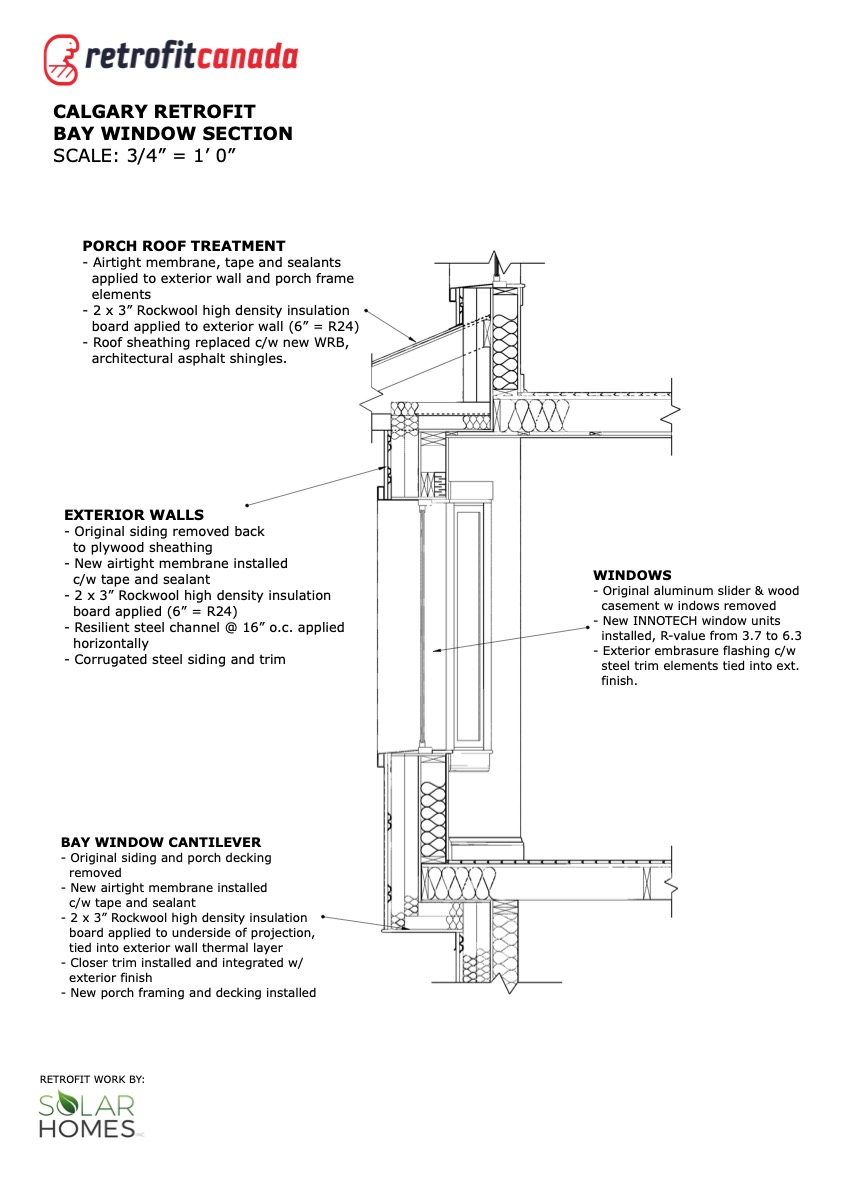

Drawing 2 Bay Window Section

Drawing 3 Foundation Section

Before & After

BEFORE

AFTER

ENERGY
CONSUMPTION
BEFORE
114
GJ/year
AFTER
60
GJ/year
COMFORT
BEFORE
Typical for 1980s home
AFTER
Better temperature control, less drafty
BUILDING CONDITION
BEFORE
Dated cladding/exterior 3.5 ACH50
AFTER
Looks brand new. .93 air changes ACH50.
RENEWABLES
BEFORE
4373 kWh of Solar
AFTER
4373 kWh of Solar
WAll Insulation
BEFORE
R19
AFTER
6” Roxul with Corrugated Steel Siding, R34
Ceiling Insulation
BEFORE
R27
AFTER
R71
Foundation Insulation
BEFORE
No exterior insulation
AFTER
Added R20 to exterior 18" Below Grade
Windows
BEFORE
Aluminium sliders and Wood, R1 to R1.8
AFTER
Innotech Windows, R3.7 to R 6.3
Ventilation
BEFORE
None
AFTER
ERV added
Heating
BEFORE
Condensing natural gas furnace, 16.5 kW, 56500 BTU/h 95% AFUE; Wood Fireplace
AFTER
2.5 tonne Daikin heatpump
Cooling
BEFORE
None
AFTER
2.5 tonne Daikin heatpump
Hot Water
BEFORE
189L (50 USG) Natural Gas Hot Water Tank
AFTER
50 Gallon Ao Smith Heatpump hotwater
