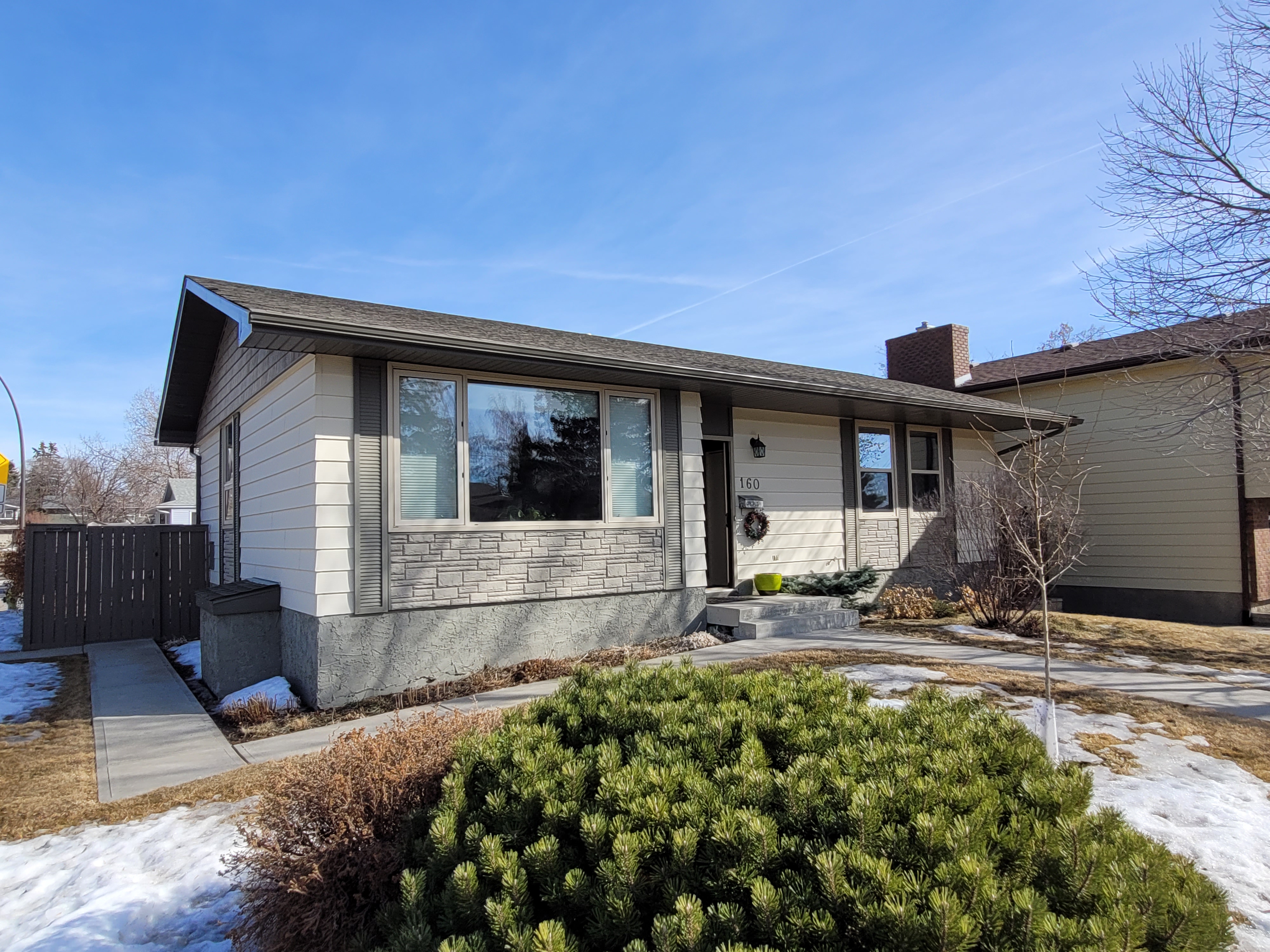

1975 Calgary NE bungalow: Better than expected


This 1975 bungalow retrofit added major efficiency upgrades, and in its first year, the solar PV system generated more energy than the home used.


Location Calgary, AB Year Built 1975
Total Floor Area 183.1m2 Climate Zone 7a
Heating Degree Days 5000 Retrofit Status Complete
Year Completed 2024 Annual Energy Savings 90.91%
Operational Carbon Savings 5.88 tCO2eq/yt

Upgrades

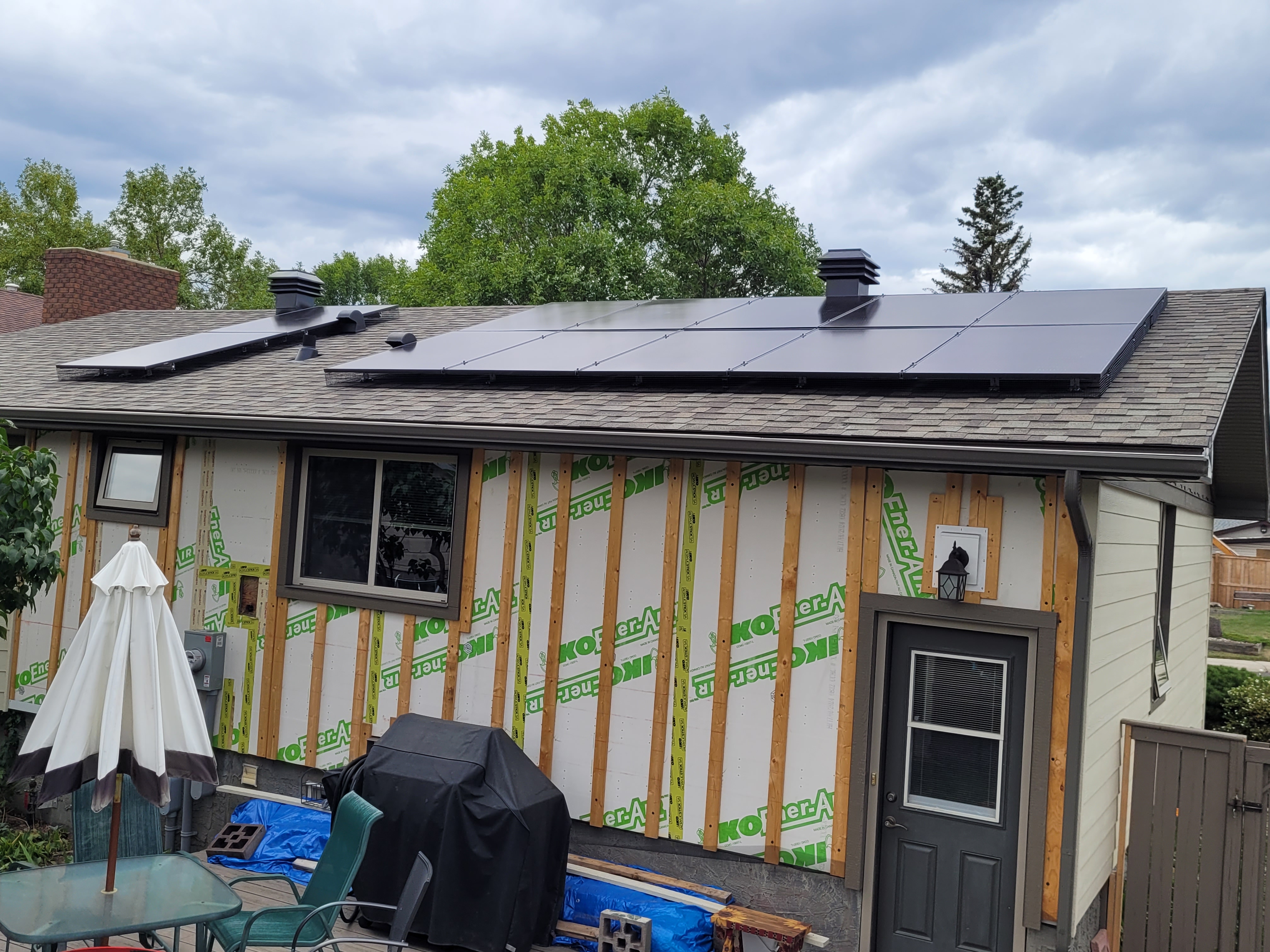

  • 9.84 kW Solar PV system
  • Truss Baffles and Blow in Cellulose for Attic

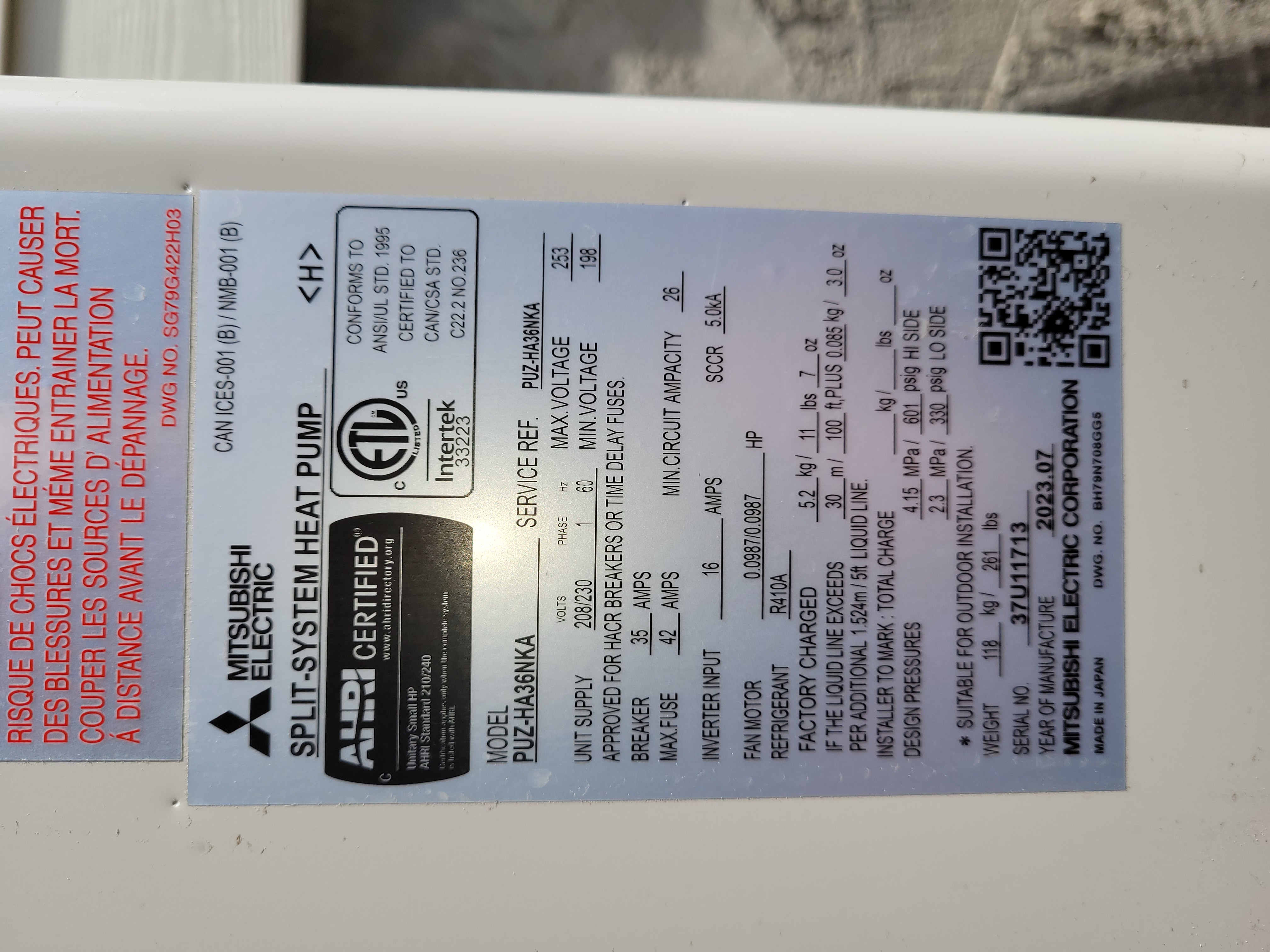

  • Mitsubishi ZUBA ducted heat pump system

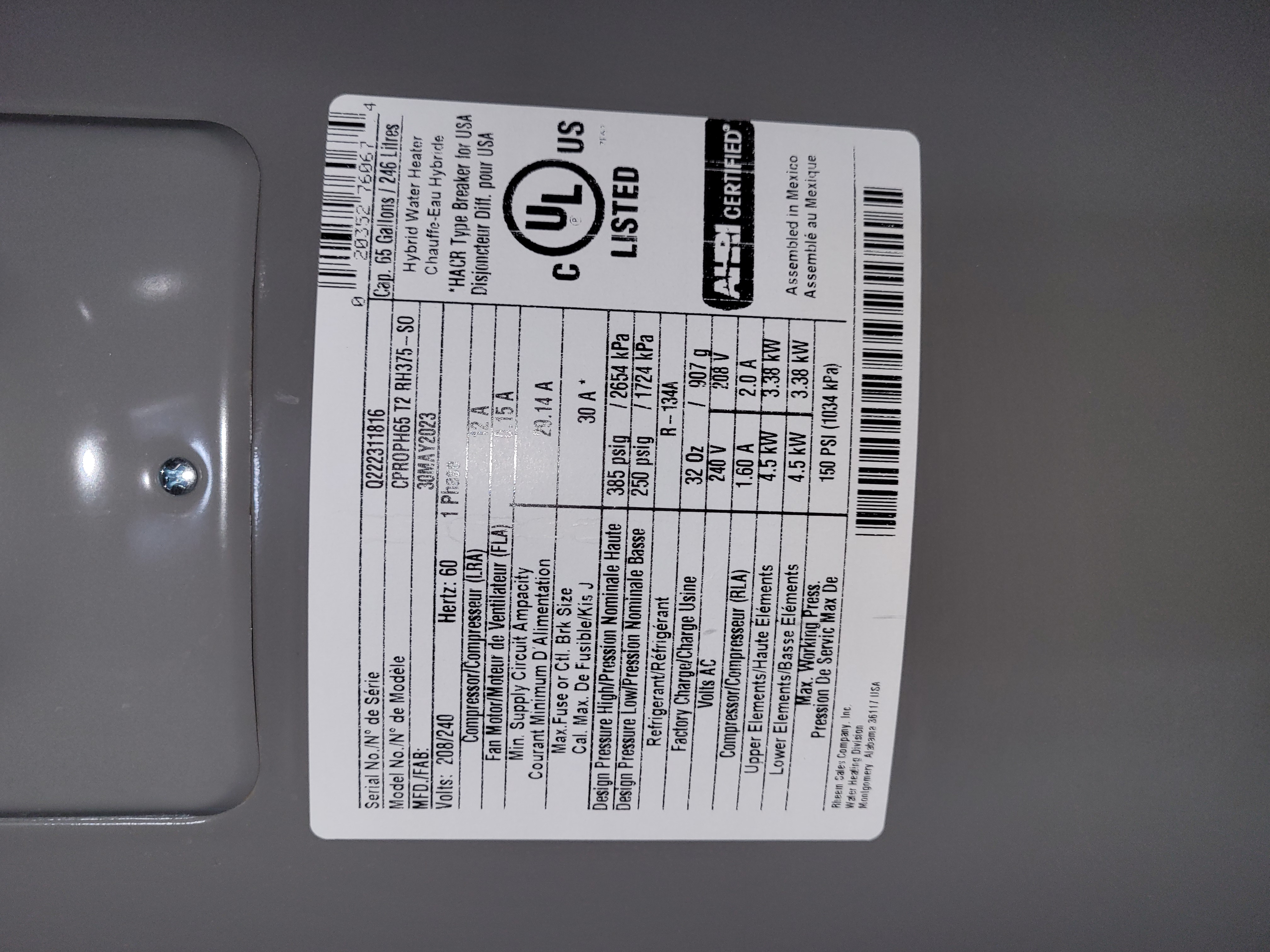

  • Rheem CPROPH65 – SO Hot Water Heat Pump

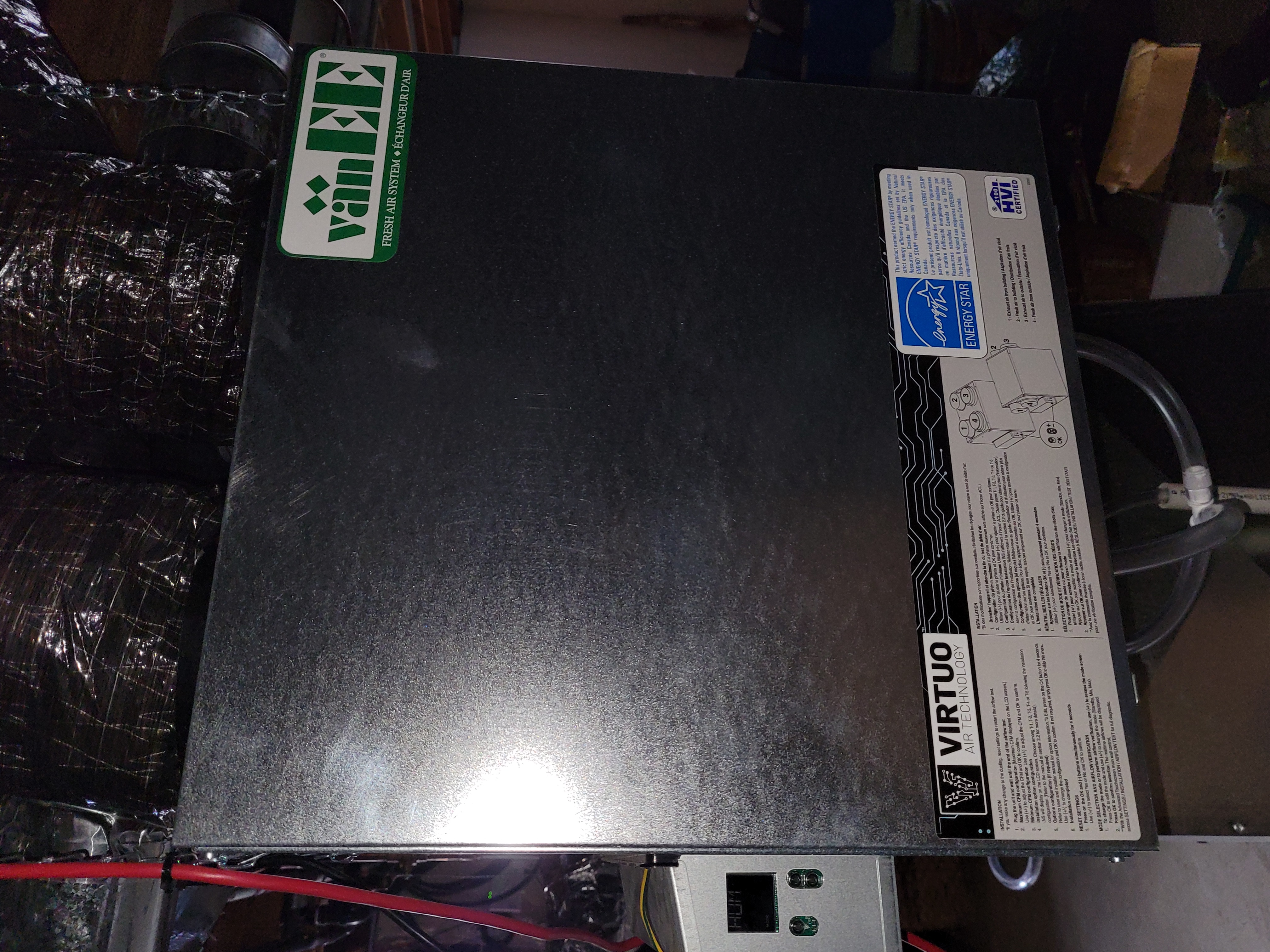

  • vänEE V150H75NT HRV
  • Hardie Plank Select Cedarmill

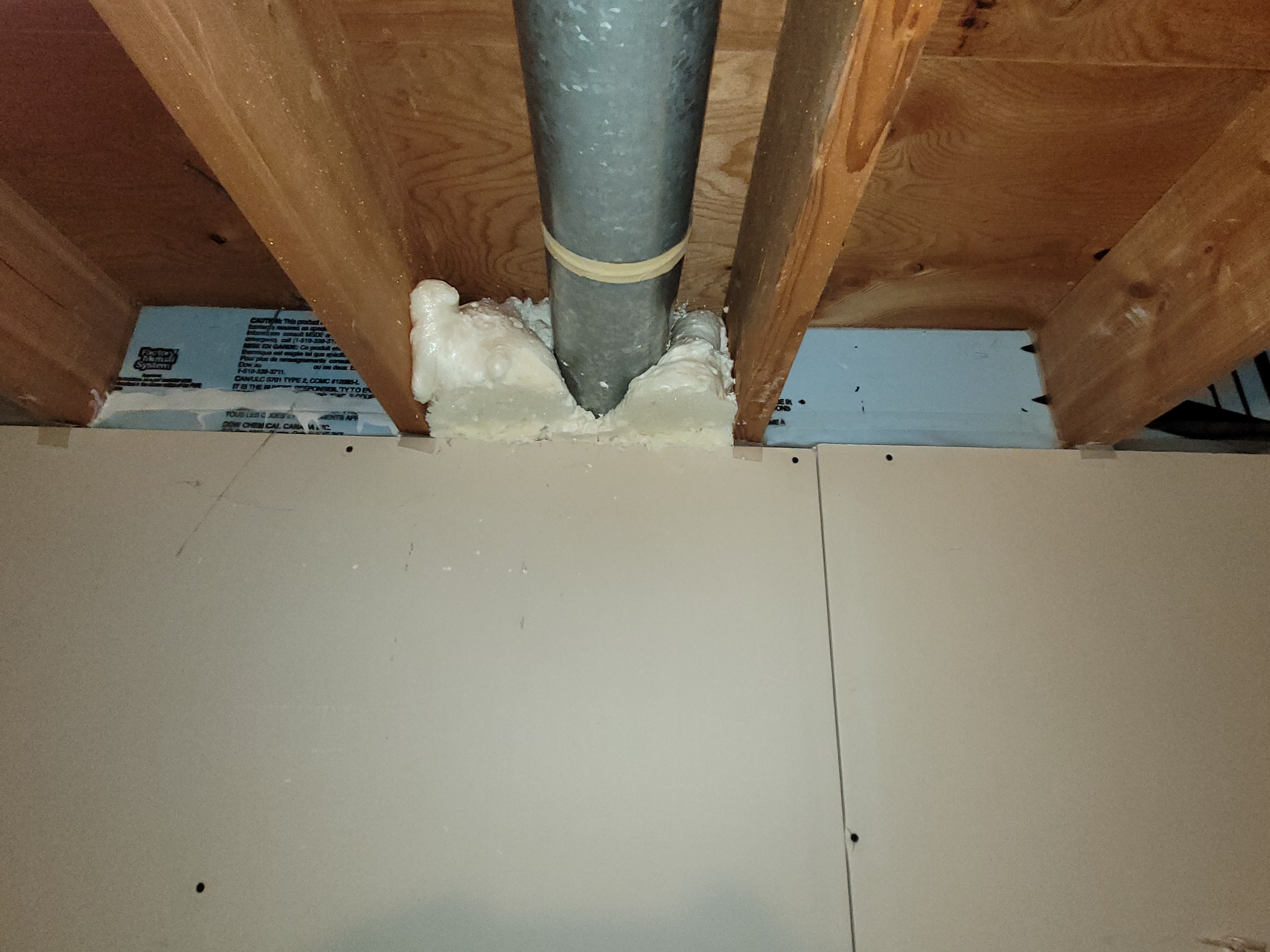

  • Ener-Air Insulation

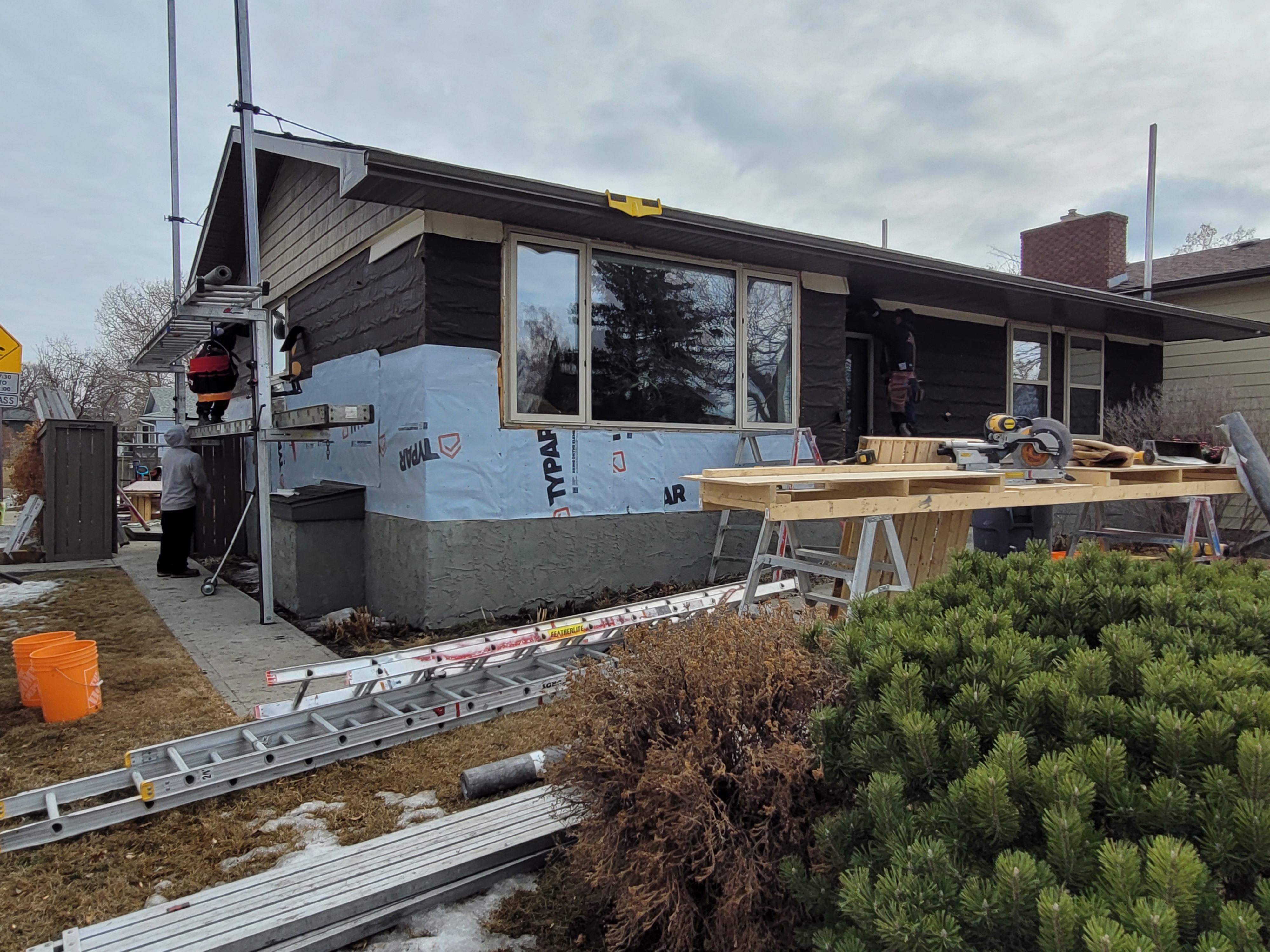

  • Typar House Wrap
  • Resheet Gables

Project Description

Getting to Net Zero

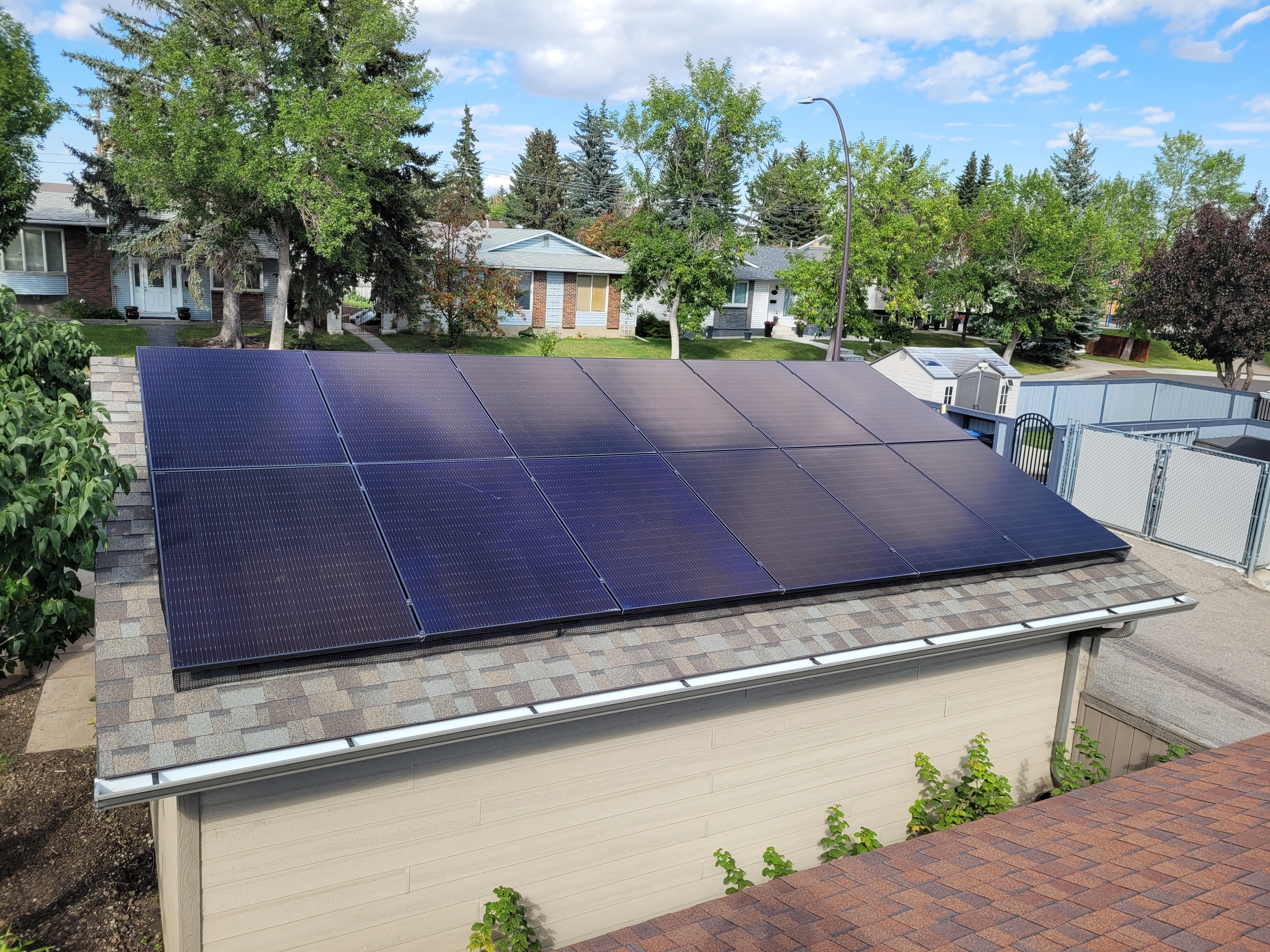

Over the first year of operation, the 9.84 kW solar photovoltaic (PV) system produced 9,203 kWh of electricity while consuming only 8,164 kWh, resulting in a net surplus of 1,039 kWh, equivalent to 3.74 GJ. Notably, peak production occurred between May and August, with exports consistently above 1,200 kWh per month, while winter months saw higher consumption but still maintained export activity, particularly in February with 189 kWh sent back to the grid.

The homeowner was able to disconnect the natural gas two weeks after the heat pumps were installed. The home is now emissions neutral.

Other improvements:

Homeowner made several other energy efficiency improvements, including these upgrades:

  • Switched to LED lighting
  • Upgraded many appliances (changed from standard electric range to induction range, and plasma to LED TV)
  • Went to one fridge instead of two
  • Installed thermal window coverings

Lessons Learned

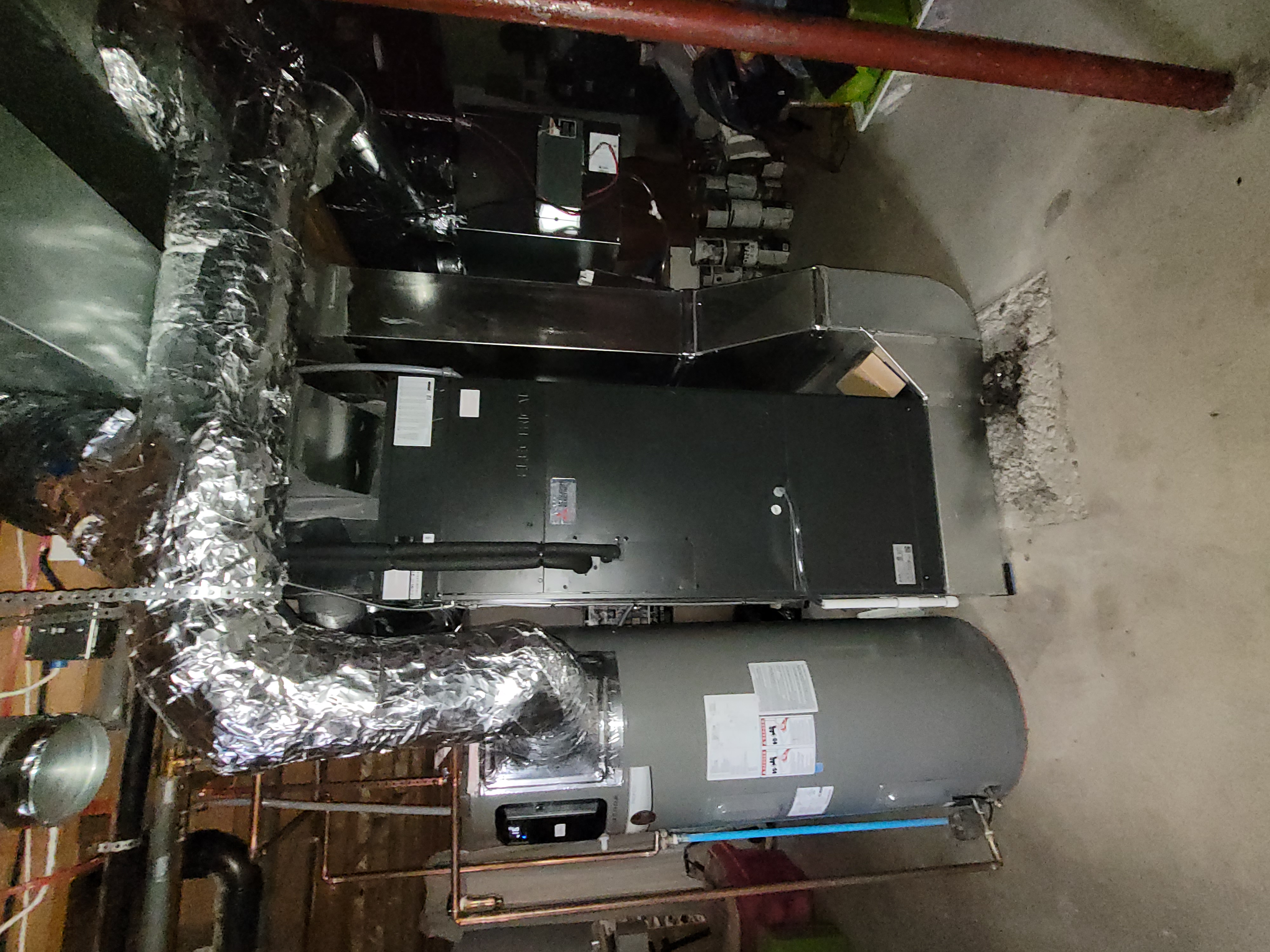

The homeowner was concerned that switching to a heat pump hot water tank would create too much cold air in the basement. The HVAC supplier added venting from the hot water tank to vent outside. The venting can be switched during hot weather to dump into the blower to help cool the house.
